What Exactly Is C2 Continuity? A Smooth Ride, Technically Speaking

1. Understanding the Basics of Smoothness

Ever wondered what makes a car ride feel so smooth? Or why some computer-generated images look incredibly realistic, while others appear jagged? Often, the secret lies in something called "C2 continuity." Don't let the technical-sounding name scare you. At its core, C2 continuity is all about how smoothly curves connect — both in the real world and in the digital one.

Think of a rollercoaster. You wouldn't want it to suddenly jerk you around! Good rollercoaster design aims for smooth transitions between sections of the track. That smoothness is, in many ways, striving for C2 continuity. The same concept applies to designing sleek car bodies, airplane wings, and even the fonts you're reading right now.

So, what does C2 continuity actually mean? Well, it means that not only is the curve itself continuous (no sudden jumps or breaks!), but also its first and second derivatives are continuous. Hold on, hold on! Don't run away yet. Let's break that down. The first derivative represents the slope of the curve at any given point. The second derivative represents the rate of change of that slope (aka the curvature).

C2 continuity essentially ensures that the curve transitions smoothly in terms of its position, direction (slope), and how quickly that direction is changing (curvature). Imagine drawing a line with a pen. If you can draw it without lifting your pen and without any sudden changes in direction or curvature, you're pretty close to illustrating C2 continuity. Pretty neat, huh?

CS184 Spring_09

The Math Behind the Magic (Don't Worry, We'll Keep It Light!)

2. Derivatives and Smooth Transitions

Okay, let's tiptoe into the mathematical world without getting lost in a jungle of equations. Remember those derivatives we mentioned? Think of the first derivative as the speed of a car. A continuous first derivative means the car's speed isn't jumping around instantaneously.

Now, the second derivative is like the car's acceleration. A continuous second derivative means the acceleration isn't changing abruptly. In simpler terms, you're not slamming on the brakes or flooring the gas pedal suddenly. Everything is nice and gradual.

Why are these continuous derivatives so important? Because sudden changes in slope or curvature can lead to all sorts of problems. In engineering, they can cause stress points and potential failures. In computer graphics, they can create visual artifacts like aliasing (those jagged edges you sometimes see on digital images).

So, C2 continuity ensures that our curves, surfaces, and paths are not only connected but also transition smoothly in terms of speed and acceleration. This leads to more aesthetically pleasing designs, more stable structures, and a generally more pleasant experience for anyone interacting with these things. Think of it as the difference between a bumpy dirt road and a freshly paved highway.

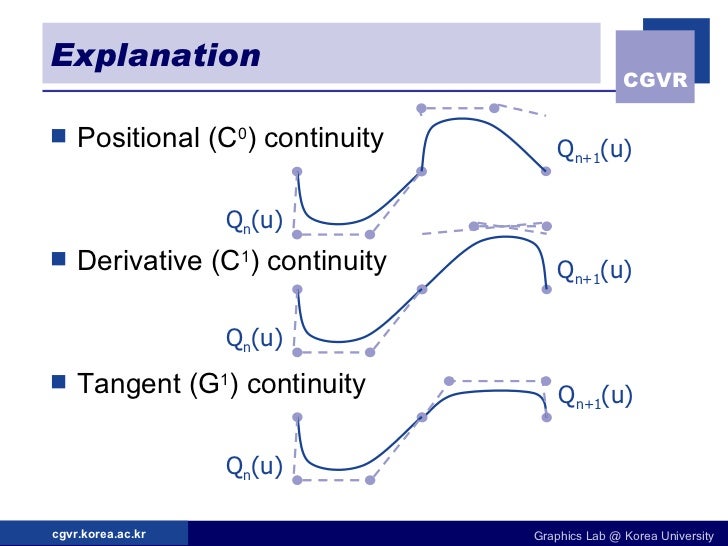

07object3d 1

Why Should You Care About C2 Continuity? (Real-World Applications)

3. From Car Design to Computer Graphics

Alright, you might be thinking, "This is interesting, but how does this affect my daily life?" Well, C2 continuity is all around you, even if you don't realize it. Consider the design of your car. The smooth curves of the body aren't just for aesthetics; they also contribute to aerodynamics and fuel efficiency. Engineers use C2 continuity principles to minimize drag and maximize performance. If those curves weren't smooth, your fuel bill might be a lot higher!

Another major application is in computer graphics. When creating 3D models for games or movies, artists strive for C2 continuity to ensure that the surfaces look realistic and don't have any distracting visual glitches. This is especially important for rendering highlights and reflections, which are highly sensitive to surface curvature. Have you ever noticed how realistic some animated characters are becoming? C2 continuity is playing a big part in that.

Beyond cars and graphics, C2 continuity is also used in font design (making those letters look pleasing and easy to read), architecture (creating aesthetically pleasing and structurally sound buildings), and even robotics (designing smooth and predictable robot movements). Basically, anywhere where smooth transitions and predictable behavior are important, C2 continuity is likely at play.

It's the unsung hero of smooth experiences! It's the reason that objects and designs feel "right" to the eye. Without it, our world would be a much more jarring, angular, and uncomfortable place to navigate.

MAE 152 Computer Graphics For Scientists And Engineers Ppt Download

Spotting C2 Discontinuity

4. Identifying the Imperfections

While C2 continuity is desirable, sometimes it's not achievable or necessary. Knowing what a C2 discontinuity looks like can help you appreciate the effort that goes into creating smooth transitions. Imagine a sharp bend in a road, like a 90-degree turn. That's a classic example of a discontinuity in curvature (and therefore, a C2 discontinuity).

In computer graphics, C2 discontinuities can manifest as visible seams or creases on a surface. This often happens when joining different patches of a 3D model together. Experienced 3D modelers spend a lot of time smoothing out these discontinuities to create a seamless appearance.

Think of a poorly designed rollercoaster. If you feel a sudden jolt or change in direction that isn't smooth, chances are you're experiencing a C2 discontinuity. It's not necessarily dangerous, but it's certainly not the most pleasant sensation!

Essentially, a C2 discontinuity is any point where the curvature of a curve or surface changes abruptly. Learning to recognize these discontinuities is like developing a refined palate for smoothness. Once you start looking for them, you'll see them everywhere!

PPT Curves PowerPoint Presentation, Free Download ID5765523

C2 Continuity vs. Other Types of Continuity

5. Levels of Smoothness

C2 continuity is just one type of continuity. There are other levels, each with its own characteristics. C0 continuity, for instance, simply means that the curve is connected. There are no breaks or jumps. Think of a zigzag line; it's C0 continuous but certainly not very smooth.

C1 continuity means that the curve is not only connected but also has a continuous slope. Imagine rounding the corners of that zigzag line. You've now created a C1 continuous curve. It's smoother than C0 but still might have some sharp changes in curvature.

So, C2 continuity takes it one step further by ensuring that the curvature itself is continuous. This is what gives us those truly smooth and flowing curves that we admire in design and engineering. Each level builds upon the previous one, adding more and more smoothness to the equation.

The choice of which level of continuity to use depends on the specific application. Sometimes, C0 or C1 continuity is sufficient. But for applications where aesthetics, stability, or performance are paramount, C2 continuity (or even higher levels of continuity) is often the way to go.

C2 Continuity Of STBézier Curve Segments With Various Shape

FAQ

6. Your Burning Questions Answered

Alright, let's tackle some common questions about C2 continuity.

Q: Is C2 continuity always necessary?

A: Not always! It depends on the application. For some things, simple connectedness (C0 continuity) is enough. For others, you might need C1. C2 is used when you need truly smooth transitions, often for aesthetics or performance reasons.

Q: Can you have continuity beyond C2?

A: Absolutely! You can have C3, C4, and so on. Each higher level ensures that higher-order derivatives are continuous. This leads to even smoother curves, but it also increases the complexity of the design.

Q: How do computers ensure C2 continuity in graphics?

A: Computer graphics software uses mathematical techniques like splines and Bzier curves to create C2 continuous surfaces. These techniques allow artists to precisely control the shape and curvature of the surfaces, ensuring a smooth and realistic appearance.

Q: What happens if you ignore C2 Continuity?

A: Depending on the use case, ignoring C2 continuity could cause performance issues, aesthetic problem like jagged line, and stress on mechanical design.
