Understanding Thevenin's Theorem

1. What Exactly Is a Thevenin Equivalent Circuit?

Ever stared at a complex circuit diagram and felt your brain start to melt? You're not alone! Many electrical circuits, especially those with multiple sources and resistors, can look incredibly intimidating. But don't worry, Thevenin's theorem is here to save the day. It's like having a superpower that lets you simplify even the most complicated messes down to something manageable. Think of it as circuit origami, but instead of paper, you're folding resistors and voltage sources.

In essence, Thevenin's theorem allows you to replace a whole network of resistors and voltage sources (or even current sources, although we'll focus on voltage for now) with a single voltage source (V_th) in series with a single resistor (R_th). This resulting circuit is called the Thevenin equivalent. It acts exactly like the original circuit, at least from the perspective of the load connected to it. That's the real magic here! We're not changing how the load sees things; we're just making the rest of the circuit easier to analyze.

The beauty of this simplification lies in its practicality. Imagine you're designing a circuit that needs to interface with several different modules. Instead of analyzing the entire system every time you change a module, you can use Thevenin's theorem to find the equivalent of each module. Now you're dealing with much simpler circuits, making calculations quicker and design changes less of a headache. It's like swapping out a tangled mess of wires for a clean and organized connector.

So, to sum it up, the Thevenin equivalent is a simplified representation of a more complex circuit, consisting of a single voltage source (V_th) in series with a single resistor (R_th). This simplified circuit behaves identically to the original circuit when viewed from the terminals of interest. It's all about making your life, or at least your circuit analysis, a whole lot easier.

Thevenin’s Theorem Tutorial Thevenin's Equivalent Circuit

Delving Deeper

2. Finding V_th: The Open-Circuit Voltage

Okay, so we know we want to replace our complicated circuit with a single voltage source and a single resistor. But how do we actually find the values of V_th and R_th? Let's start with V_th, the Thevenin voltage. This is also sometimes referred to as the open-circuit voltage. Why? Because it's the voltage you would measure across the terminals of your original circuit when there's nothing connected to those terminals. Essentially, you're opening the circuit at the point where you'd normally connect your load.

Think of it like measuring the voltage of a battery before you plug it into anything. It's the voltage potential that's available when there's no current flowing. Finding V_th often involves using circuit analysis techniques like voltage division, Kirchhoff's Voltage Law (KVL), or Kirchhoff's Current Law (KCL) on the original, unloaded circuit. It might sound complex, but with a little practice, it becomes second nature. The key is to remember that no current flows through the open circuit, which simplifies the analysis considerably.

So, how does this apply in real life? Imagine you are trying to power your IoT device using a USB port. If you can find the Thevenin equivalent of the USB power supply, it will provide insights into the open circuit voltage when no current flows to the device.

Once you've determined the voltage across the open terminals, that's your V_th! You can now use this value to build the Thevenin equivalent circuit. Congratulations, you're one step closer to simplifying your circuit woes.

3. Finding R_th: The Equivalent Resistance

Now that we've conquered V_th, let's tackle R_th, the Thevenin resistance. This is the resistance you would "see" looking back into the circuit from the terminals where you'd normally connect your load, but with all independent voltage sources short-circuited and all independent current sources open-circuited. That's a mouthful, I know, but let's break it down.

First, short-circuiting voltage sources means replacing them with a wire (a path of zero resistance). Open-circuiting current sources means removing them completely (creating a path of infinite resistance). Then, you need to determine the equivalent resistance between the two terminals we are looking at by doing series or parallel circuit analysis. With voltage and current sources neutralized, you're left with just a network of resistors. You can then use series and parallel resistance combination rules to find the equivalent resistance. This is your R_th!

Another way to find R_th is by using a test source method. You connect either a 1V voltage source or 1A current source at the output terminals of the circuit and measure the current or voltage provided by it. Then R_th = V_test/I_test. Choosing the proper test source will make calculations a lot easier.

Why do we do this? Because R_th represents the internal resistance of the original circuit as seen from the load's perspective. It's a crucial parameter for understanding how the circuit will behave under different load conditions. A higher R_th means the circuit is more susceptible to voltage drops when a load is connected. Finding R_th allows you to predict and compensate for these effects, ensuring your circuit performs as expected.

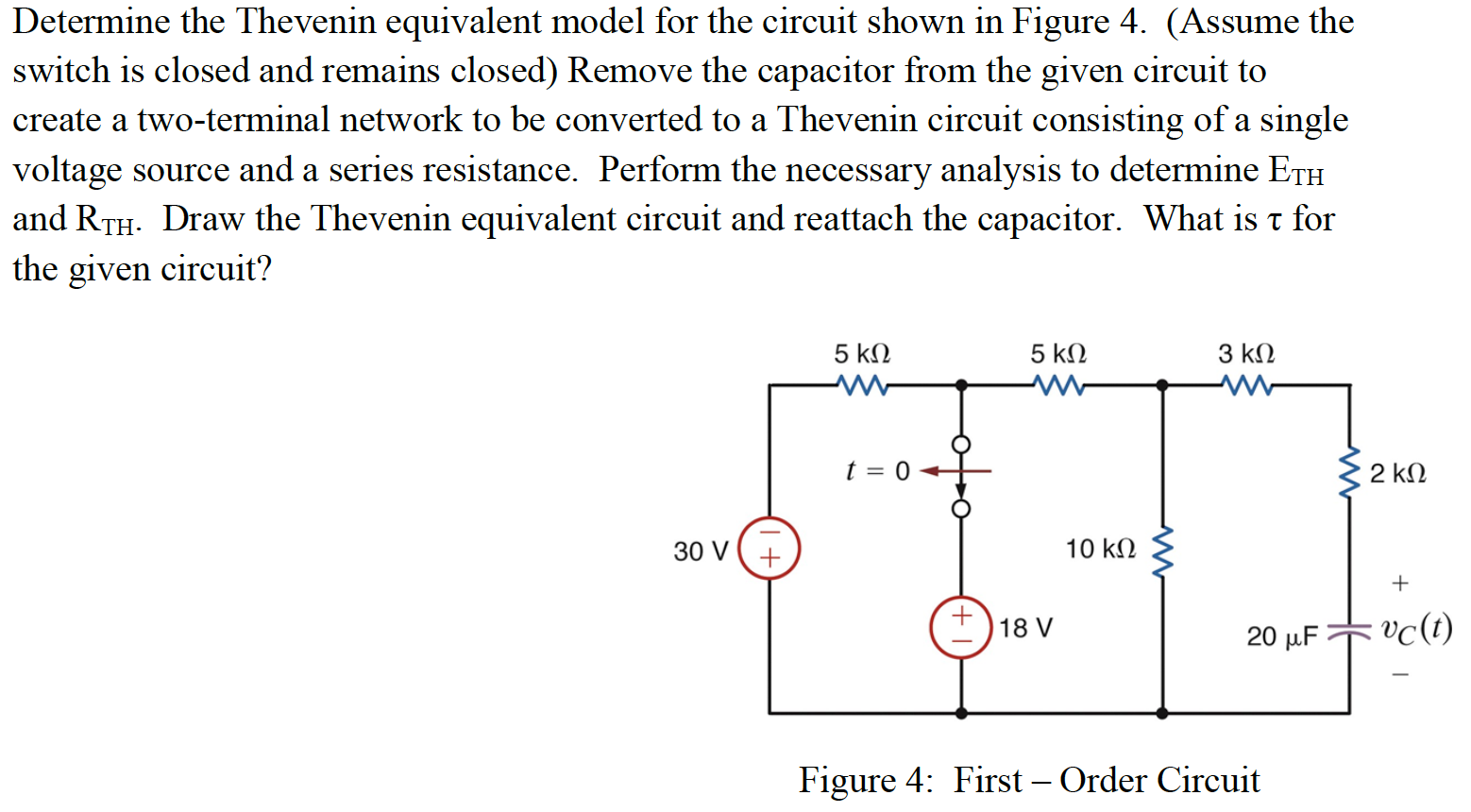

Solved Determine The Thevenin Equivalent Model For

Why Bother With Thevenin's Theorem? What's the Point?

4. Simplifying Complex Circuit Analysis

Let's be honest, complex circuits can be a real pain to analyze. With multiple voltage sources, resistors, and interconnected loops, finding currents and voltages at specific points can feel like trying to solve a Rubik's Cube blindfolded. Thevenin's theorem provides a welcome respite from this complexity. By reducing a large, intricate circuit to a simple voltage source and resistor, it allows you to focus on the behavior of the circuit at a specific point, without getting bogged down in the details of the entire network.

This simplification is especially useful when you're only interested in the current and voltage across a particular load resistor. Instead of solving for the entire circuit, you can just find the Thevenin equivalent and then analyze the simple series circuit. It's like using a magnifying glass to focus on a specific area of interest, rather than trying to take in the whole landscape at once.

Consider designing a complex audio amplifier with several stages of amplification. By finding the Thevenin equivalent of each stage's output, you can easily determine how each stage interacts with the next, optimizing the overall performance of the amplifier. Thevenin's theorem transforms a daunting task into a manageable one.

In essence, Thevenin's theorem is your secret weapon for conquering complex circuit analysis. It's a powerful tool that can save you time, reduce errors, and make your life as an electrical engineer, technician, or hobbyist significantly easier.

5. Analyzing Circuits With Varying Loads

Another major advantage of Thevenin's theorem is its ability to simplify the analysis of circuits with varying loads. Imagine you have a circuit that needs to drive different types of loads, each with a different resistance. Without Thevenin's theorem, you'd have to re-analyze the entire circuit every time you change the load. Talk about tedious!

However, with Thevenin's theorem, you only need to find the Thevenin equivalent of the circuit once. Then, you can easily calculate the voltage and current across any load resistor by simply plugging it into the Thevenin equivalent circuit. It's like having a pre-calculated solution that you can use for any load you throw at it. This is incredibly useful in situations where you need to quickly evaluate the performance of a circuit under different load conditions.

Take, for instance, designing a power supply that needs to provide stable voltage to a range of different devices. By using Thevenin's theorem, you can quickly determine how the output voltage will vary as the load resistance changes, ensuring that your power supply meets the requirements of all the connected devices. This allows you to optimize the power supply design for maximum efficiency and stability.

The ability to analyze circuits with varying loads is a key reason why Thevenin's theorem is such a valuable tool in electrical engineering. It allows you to design and analyze circuits with confidence, knowing that you can easily predict their behavior under a wide range of operating conditions.

Beyond Resistors and Voltage Sources

6. The Linearity Requirement

While Thevenin's theorem is incredibly powerful, it's important to understand its limitations. The most fundamental requirement for applying Thevenin's theorem is that the circuit must be linear. This means that the relationship between voltage and current in the circuit must be linear. In practical terms, this means that the circuit elements (resistors, capacitors, inductors, and dependent sources) must have a linear voltage-current relationship. Elements like diodes and transistors, when operating in their non-linear regions, invalidate the application of Thevenin's theorem directly.

Non-linear circuits require different analysis techniques, such as superposition or piecewise linear approximation. In some cases, you can linearize a non-linear circuit around a specific operating point and then apply Thevenin's theorem. However, it's crucial to remember that the resulting Thevenin equivalent will only be valid for small variations around that operating point.

Also note that Thevenin's theorem does not provide you with the power being consumed by each element inside the original circuit. So you would not be able to tell if one resistor is getting extremely hot compared to another. All you know is that the circuit external to the Thevenin equivalent circuit will work as expected.

So, before applying Thevenin's theorem, make sure that your circuit meets the linearity requirement. Otherwise, you might end up with inaccurate results and a circuit that doesn't behave as expected.

7. Dealing with Dependent Sources

Thevenin's theorem can also be applied to circuits containing dependent sources (also known as controlled sources). These are voltage or current sources whose value depends on the voltage or current at another point in the circuit. Analyzing circuits with dependent sources can be tricky, but Thevenin's theorem can still be a valuable tool.

When finding R_th in a circuit with dependent sources, you can't simply short-circuit voltage sources and open-circuit current sources. Instead, you need to use the test source method described earlier. Apply a test voltage or current source to the terminals and then calculate the resulting current or voltage. The ratio of the test voltage to the test current will give you R_th.

It is very important to keep in mind that you have to leave the dependent source alone. Do not turn it into a short circuit. Leave the dependent source as is, then proceed with the test source method to find R_th.

Remember that dependent sources are part of the circuit's intrinsic behavior, and you need to account for their influence when finding the Thevenin equivalent. With a little extra care, you can successfully apply Thevenin's theorem to circuits with dependent sources and simplify your analysis considerably.

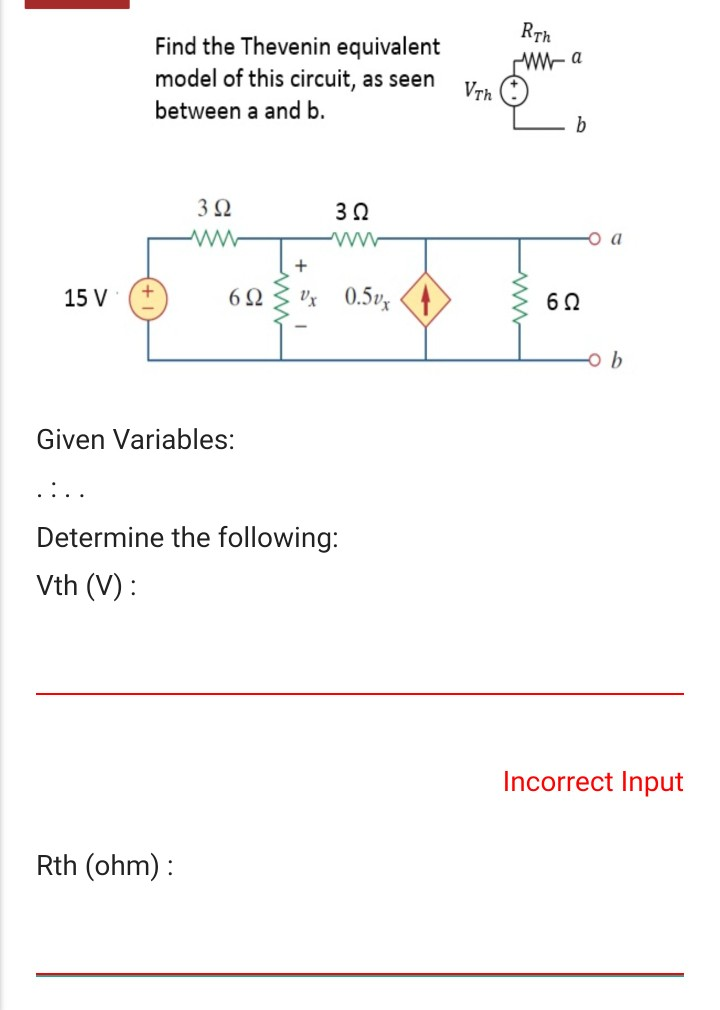

Solved RTh Find The Thevenin Equivalent Model Of This

Real-World Applications

8. Circuit Design and Simplification

The most obvious application of Thevenin's theorem is in simplifying complex circuit designs. When faced with a circuit that seems overwhelming, applying Thevenin's theorem can break it down into manageable components, making analysis and troubleshooting much easier. It's like taking a complex puzzle and separating it into smaller, more manageable pieces.

For example, when designing a multi-stage amplifier, you can use Thevenin's theorem to simplify each stage and analyze its interaction with the other stages. This allows you to optimize the overall performance of the amplifier, ensuring that it meets your design specifications. It also makes it easier to identify potential problems and make necessary adjustments.

In another example, you could use Thevenin's theorem to analyze the impact of a power supply on a connected load. By finding the Thevenin equivalent of the power supply, you can easily determine how the load will affect the voltage and current supplied by the power supply, ensuring that it can deliver the required power without any issues.

In short, Thevenin's theorem is an indispensable tool for circuit designers, allowing them to simplify complex circuits, optimize their performance, and troubleshoot potential problems with ease.

9. Troubleshooting Electrical Systems

Beyond design, Thevenin's theorem is invaluable for troubleshooting electrical systems. When faced with a faulty circuit, finding the Thevenin equivalent can help you isolate the problem and identify the faulty component. It's like using a map to navigate through a complex maze, pinpointing the exact location of the hidden treasure.

For example, if you're experiencing a voltage drop in a circuit, you can use Thevenin's theorem to determine the source of the problem. By finding the Thevenin equivalent of different sections of the circuit, you can identify the section that's causing the voltage drop and then focus your troubleshooting efforts on that area. This can save you a lot of time and effort compared to blindly checking every component in the circuit.

In industrial settings, where complex electrical systems are commonplace, Thevenin's theorem is used extensively for fault diagnosis and maintenance. By using the concept of Thevenin, engineers can quickly locate the problems and fix them.

So, whether you're a seasoned electrician or a DIY enthusiast, Thevenin's theorem can be a valuable asset in your troubleshooting toolkit, helping you diagnose and repair electrical systems efficiently and effectively.

Learning To Simplify Thevenin And Norton Equivalent Circuits

FAQ

10. Q

A: Absolutely! Thevenin's theorem works for both DC and AC circuits. In AC circuits, you'll be dealing with impedances (complex resistances) instead of just resistances, and the voltage and current sources will be AC sources with specific frequencies. The concepts remain the same; you'll just need to use complex number arithmetic to calculate V_th and Z_th (the Thevenin impedance).

11. Q

A: Thevenin's theorem, in its purest form, doesn't apply directly to circuits with non-linear elements. However, you can sometimes linearize the circuit around a specific operating point and then apply Thevenin's theorem. Just be aware that the resulting Thevenin equivalent will only be valid for small variations around that operating point. For larger signal swings, more advanced analysis techniques are needed.

12. Q

A: They're closely related! Norton's theorem provides an equivalent circuit consisting of a current source in parallel with a resistor, while Thevenin's theorem uses a voltage source in series with a resistor. Both theorems achieve the same goal: simplifying a complex circuit to a manageable equivalent. You can easily convert between a Thevenin equivalent and a Norton equivalent using source transformation techniques. They are essentially two sides of the same coin!
